Tritium

Starting a charge session on a Tritium charger

1. Select the charger in the app and press "start charge" on the desired connector or swipe your RFID card below the screen.

2. Wait for the charger to verify your start request (you will see an authorised message on the screen and it will prompt you to plug in).

3. Plug the cable into your electric vehicle (and into the charger if you are using your own cable).

4. Listen for a 'clunk' noise - this is the sound of the locking pins securing the cable so it cannot be unplugged. Power will start flowing to the vehicle after this point.

5. To end the charge session, either swipe your RFID card in the same place as you did in step 1 or follow the steps below to end from the app.

Ending a charge from the app

1. Go to the 'Charge' page

2. Click on the lightning bolt

3. Click "end charge"

Alternative method to end a charge

1. Follow the vehicle manufacturers' process to unlock the charging cable from the vehicle (typically "unlocking" button via key fob) - please note this will not be an option if using the ChaDeMo connector.

2. Remove the charging cable from the vehicle.

3. This should end the charge and release the cable from the charge point.

Notes on Tritium Chargers

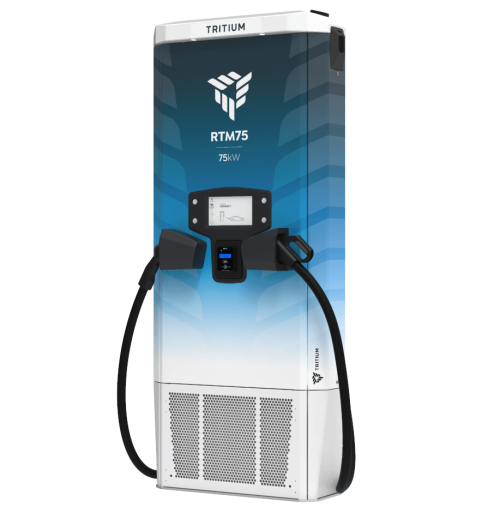

• Tritium chargers can be configured with different connector combinations so chargers at your site may not match the image below.
