Delta

Starting a charge session on a Delta UFC150/UFC 200

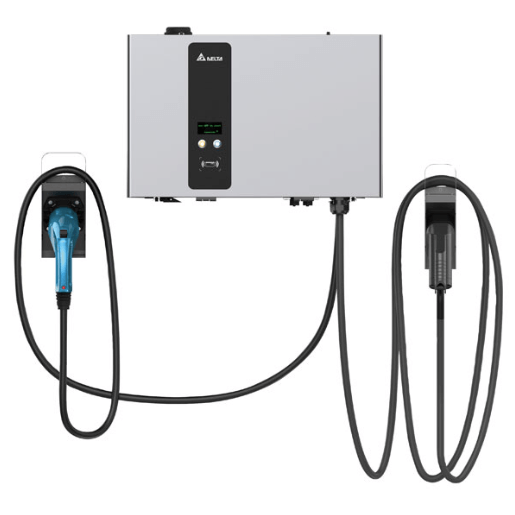

1. Select the charger in the app and press "start charge" on the desired connector/socket or swipe your RFID card above the RFID icon (examples below).

2. Wait for the charger to verify your start request (you will see an authorised message on the screen and it will prompt you to plug in).

3. Plug the cable into your electric vehicle (and into the charger if you are using your own cable).

4. Listen for a 'clunk' noise - this is the sound of the locking pins securing the cable so it cannot be unplugged. Power will start flowing to the vehicle after this point.

5. To end the charge session, either swipe your RFID card in the same place as you did in step 1 or follow the steps below to end from the app.

Ending a charge from the app

1. Go to the 'Charge' page

2. Click on the lightning bolt

3. Click "end charge"

Alternative method to end a charge

1. Follow the vehicle manufacturers' process to unlock the charging cable from the vehicle (typically "unlocking" button via key fob) - please note this will not be an option if using the ChaDeMo connector.

2. Remove the charging cable from the vehicle.

3. This should end the charge and release the cable from the charge point.

Notes on Delta Chargers

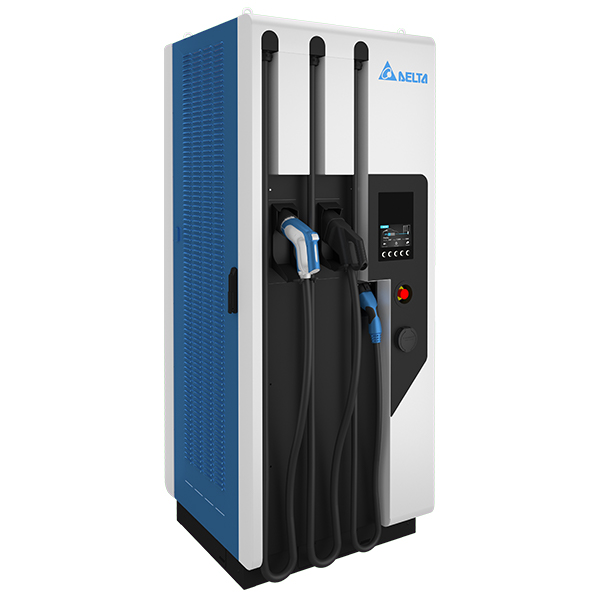

• The UFC150 and UFC200 can be configured with different numbers and types of connectors so chargers at your site may not match the image below.

• Emergency Stop button - The Emergency stop button is for emergencies only. This button should not be used to end a charging session without prior authorisation as misuse can void the warranty.
• Sockets unavailable - in some configurations, if a user is already plugged in to a connector on the unit, it may set one of the other connections as unavailable. This is due to the power inverter in the unit being shared across connectors.
